FKMZ 1210
-
Features:
▪ Flexible plastic cover made of polyurethane, prevents collision damage and freezing of snow
▪ Compensation of cross slope angles thanks to rubber spring elements in the centre → therefore very good road adaptation Drive via PTO shaft
▪ 2 heavy-duty wheels made from polyurethane
▪ Innovative swivelling kinematics for right and left swivelling
▪ Robust centre drive via spur gearbox
▪ Drive housing made entirely of stainless steelOption:
▪ Summer or winter trim depending on intended use
▪ Water spray bar (for binding sweeping dust)
▪ Folding dust guard (long rubber cover)
▪ Side marker lights
▪ Chassis for parking supportsTechnical data:
▪ Working width: 1235 mm (straight) | 1455 mm (swivelled)
▪ Brush diameter: Ø 550 mm
▪ Can be swivelled: 27° to the left / right
▪ Weight: approx. 140 kg
▪ L x W x H: 1050 x 1235 x 875 mm
▪ Brush speed: Vehicle Brush
540 min-1 130 min-1
1000 min-1 240 min-1
2000 min-1 250 min-1

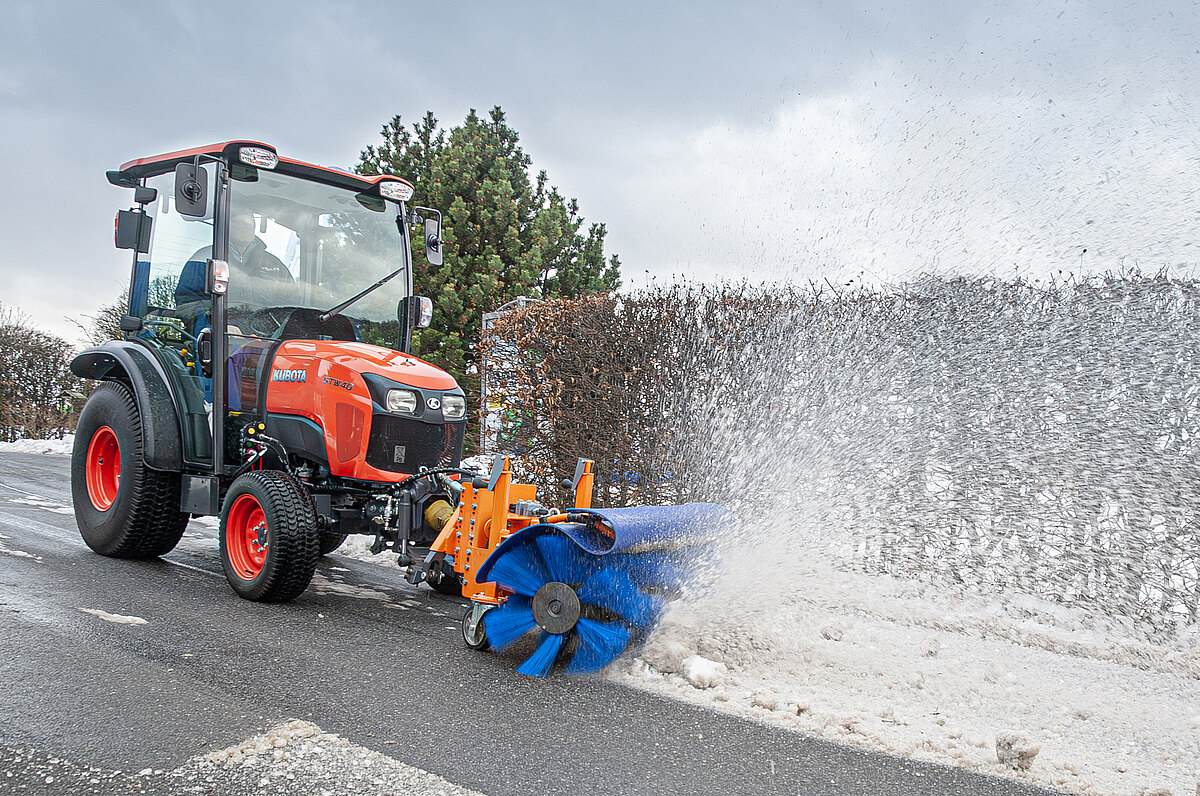

FKMZ 1310
Features:
▪ Flexible plastic cover made of polyurethane, prevents collision damage and freezing of snow
▪ Compensation of cross slope angles thanks to rubber spring elements in the centre → therefore very good road adaptation Drive via PTO shaft
▪ 2 heavy-duty wheels made from polyurethane
▪ Innovative swivelling kinematics for right and left swivelling
▪ Robust centre drive via spur gearbox
▪ Drive housing made entirely of stainless steel
Option:
▪ Summer or winter trim depending on intended use
▪ Water spray bar (for binding sweeping dust)
▪ Folding dust guard (long rubber cover)
▪ Side marker lights
▪ Chassis for parking supports
Technical data:
▪ Working width: approx. 1335 mm (straight) | approx. 1550 mm (swivelled)
▪ Brush diameter: Ø 550 mm
▪ Can be swivelled: 27° to the left / right
▪ Weight: approx. 145 kg (without mounting plate)
▪ L x W x H: 1050 x 1335 x 875 mm
▪ Brush speed: Vehicle Brush
540 min-1 130 min-1
1000 min-1 240 min-1
2000 min-1 250 min-1
FKMZ 1410
Features:
▪ Flexible plastic cover made of polyurethane, prevents collision damage and freezing of snow
▪ Compensation of cross slope angles thanks to rubber spring elements in the centre → therefore very good road adaptation Drive via PTO shaft
▪ 2 heavy-duty wheels made from polyurethane
▪ Innovative swivelling kinematics for right and left swivelling
▪ Robust centre drive via spur gearbox
▪ Drive housing made entirely of stainless steel
Option:
▪ Summer or winter trim depending on intended use
▪ Water spray bar (for binding sweeping dust)
▪ Folding dust guard (long rubber cover)
▪ Side marker lights
▪ Chassis for parking supports
Technical data:
▪ Working width: approx. 1435 mm (straight) | approx. 1645 mm (swivelled)
▪ Brush diameter: Ø 550 mm
▪ Can be swivelled: 27° to the left / right
▪ Weight: approx. 150 kg (without mounting plate)
▪ L x W x H: 1050 x 1435 x 875 mm
▪ Brush speed: Vehicle Brush
540 min-1 130 min-1
1000 min-1 240 min-1
2000 min-1 250 min-1
FKMZ 1510
Features:
▪ Flexible plastic cover made of polyurethane, prevents collision damage and freezing of snow
▪ Compensation of cross slope angles thanks to rubber spring elements in the centre → therefore very good road adaptation Drive via PTO shaft
▪ 2 heavy-duty wheels made from polyurethane
▪ Innovative swivelling kinematics for right and left swivelling
▪ Robust centre drive via spur gearbox
▪ Drive housing made entirely of stainless steel
Option:
▪ Summer or winter trim depending on intended use
▪ Water spray bar (for binding sweeping dust)
▪ Folding dust guard (long rubber cover)
▪ Side marker lights
▪ Chassis for parking supports
Technical data:
▪ Working width: approx. 1535 mm (straight) | approx. 1370 mm (swivelled)
▪ Brush diameter: Ø 550 mm
▪ Can be swivelled: 27° to the left / right
▪ Weight: approx. 155 kg
▪ L x W x H: 1050 x 1535 x 875 mm
▪ Brush speed: Vehicle Brush
540 min-1 130 min-1
1000 min-1 240 min-1
2000 min-1 250 min-1
