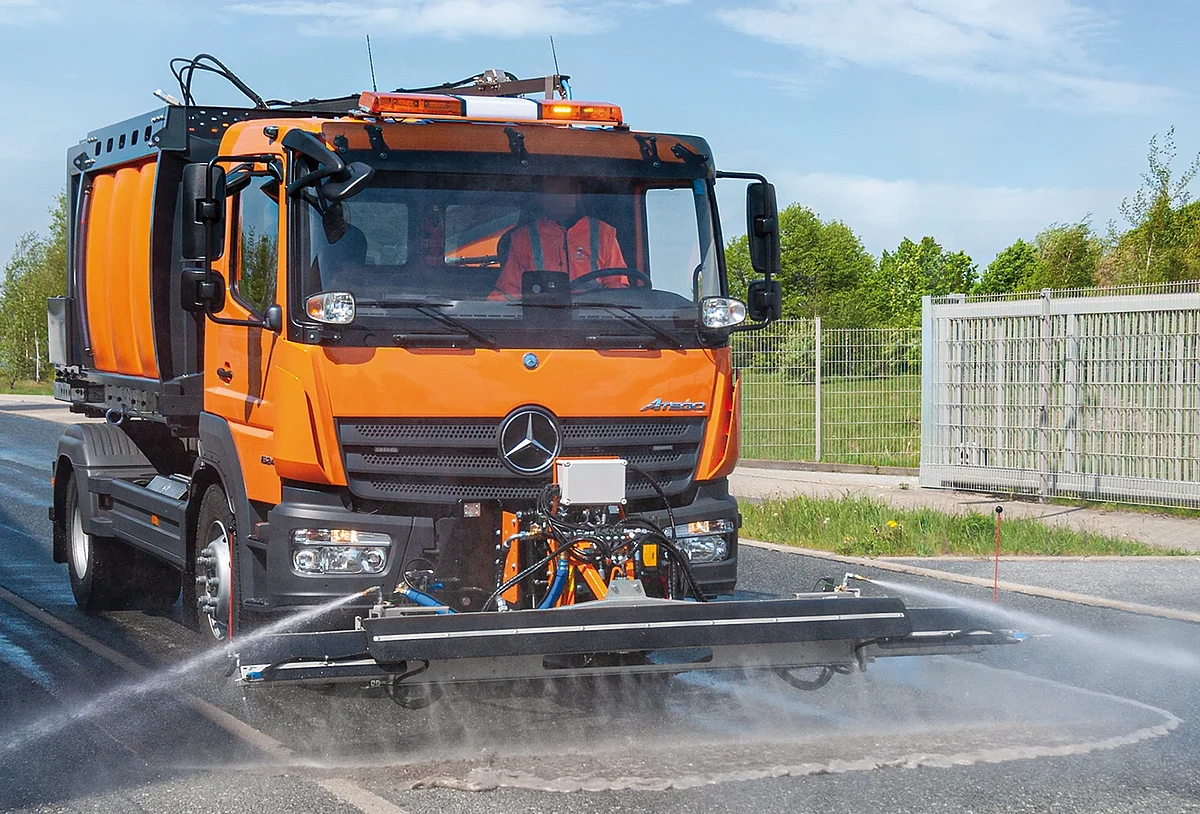

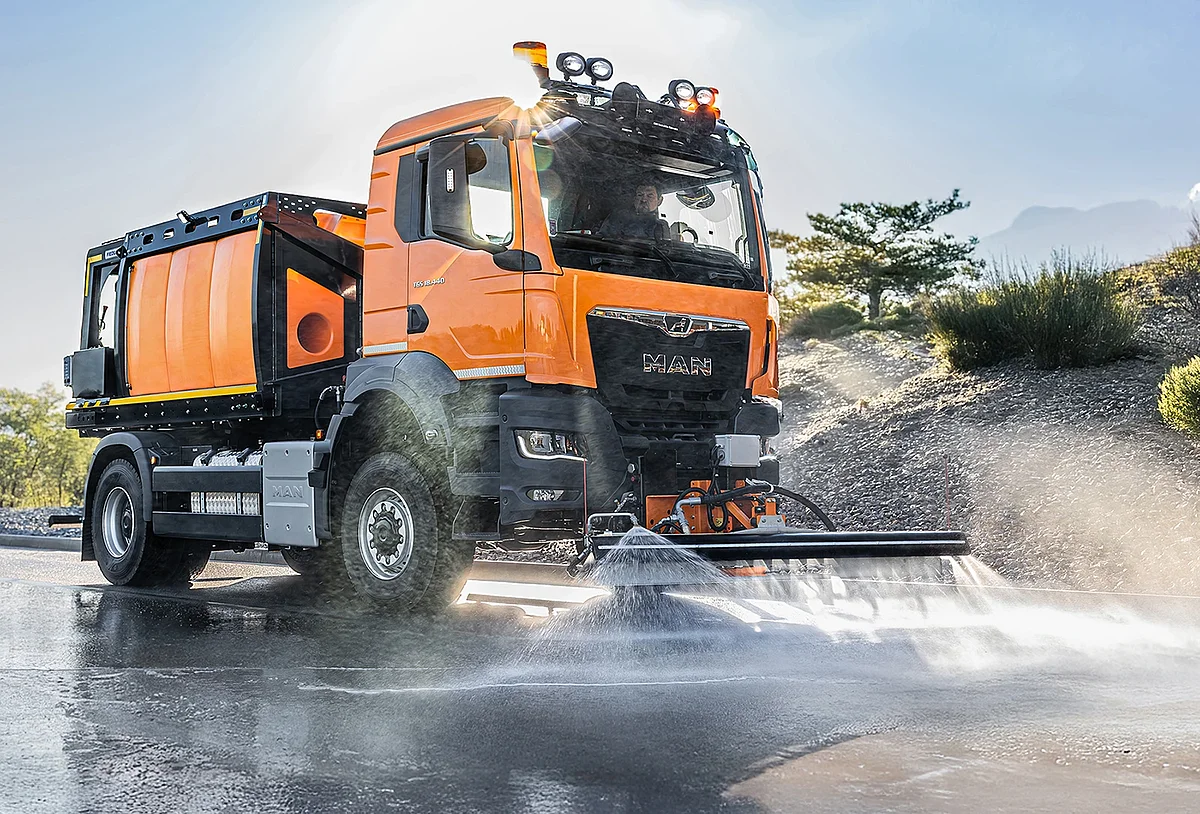

FSB2500 with 2 x telescopic extension
- Width: 2.30 m
- Working width: 2.50 m – infinitely variable telescopic (left/right) by 0.5 m each
- Working width: 2.15 m at maximum angle (± 32°)
- Hydraulic swivel mechanism right/left
- Parking support for easy attachment and removal to the front plate
- Flood beam pipe with V2A stainless steel linkage
- Weight: approx. 50 kg (without mounting plate)

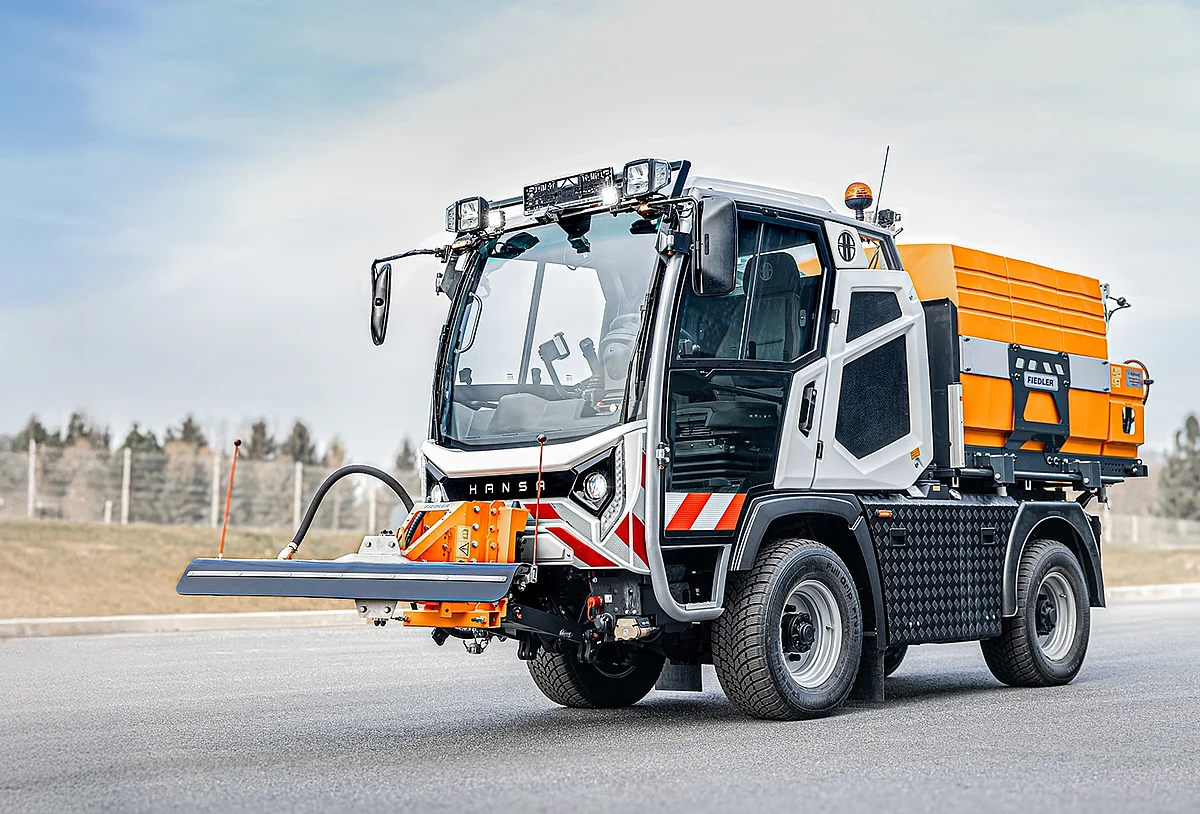

FSB 1500/2600
- Modular system allows for a wide range of combinations of different components
- Hydraulically swivelling right/left:
- maximum tilt angle +/- 32°
- Sweep bar pipe and linkage made of stainless steel
- Infinitely telescopic thanks to chain drive:
- 1100 mm extension, right or left
- All parts of the base frame and attachments are powder-coated
- Integrated collision protection on right/left up to 30°
- Parking support as standard
Options:
- Electrically adjustable/switchable fan nozzles (frog mouth)***
- Side nozzles on the right/left**
- Vertical spray bar**
- Electronically switchable high-pressure underfloor nozzle**
- Electronically switchable centre section**
- Electronic start-up protection on side shift**
- Integrated lifting mechanism
- Mechanical swivel angle adjustment
- Hydraulically driven medium-pressure/high-pressure pump
- marker lights
- Reflector plate with warning marking
- Automatic reel (mechanical)
- Hydraulic reel (radio-controlled)
- Spray guard, reducing spray mist
- Other colours available on request
Technical data:
- Weight: approx. 50 kg (basic equipment)
- Working width:
- approx. 1.5 m to 2.6 m (straight)
- approx. 1.1 m to 2.1 m (32° angle)
- Water output:
- Medium pressure: 200 / 300 l/min at 20 bar; 170 l/min at 50 bar
- High pressure on request
- Swivel angle: 32° right/left
- Colour: Anthracite grey RAL 7016, municipal orange RAL 2011
- L x W x H: approx. 550 x 1500 x 400 mm
*Illustration(s) similar, show optional equipment!
** FMC / *** FMC and EASY Control are essential
