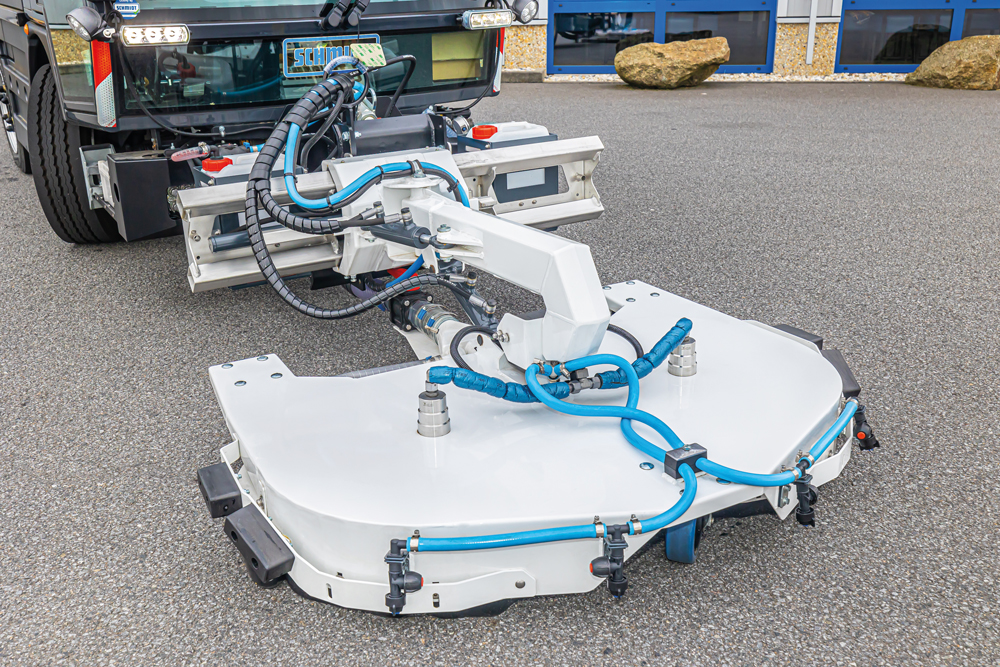

Surface cleaner

Characteristics:

• 2 rotor bars for cleaning with cold and hot water up to 350 bar
• 2.50 m working area in front of the vehicle
• 20° swivel angle (left/right)
• Sliding frame made of stainless steel with PA6 sliding guide
• active tilt adjustment via cylinder with floating position
• Polyurethane scraper (circumferentially around the deck of the surface cleaner)
• two robust rotary unions with 4 bearings
• Collision protection (left/right)
• Chassis using 3 PU heavy-duty wheels
• Cardanic suspension for optimal floor copying
• requires 3 double-acting functions (one with floating position)
• LED position lights (left/right)
• Storage trolley with wheels for easy assembly and disassembly

Options:

• Spray bar with electric pump and holder for 2x 10 liter canisters, for pre-spraying cleaning agent
• Suction bar for suction by means of a suction container
• 1.50 m wash bar on the surface cleaner
• flat sealing coupling
• Control block for surface cleaner
• vehicle-specific mounting plate

Technical specifications:

• Working speed: approx. 0.5 - 4 km/h (depending on the degree of soiling)
• Weight: approx. 150 kg (basic machine)
• Working width: 1.20 m
• HD rotor beam diameter: 420 mm
• L x W x H: 1375 x 1400 x 585 mm (basic machine)
• Oil requirement: 5 l/min (per function)
• Water requirement: min. 30 l/min at 200 bar
• Detergent container: 2x 10 L (canister)
• Cleaning performance per hour: approx. 600 m² - 4800 m² (depending on the degree of soiling)
