Maximum flexibility for winter maintenance: the Fiedler FKP wedge plough
When fluctuating snow loads meet extremely confined spaces, the Fiedler FKP wedge plough is in its element. Specially developed for demanding winter maintenance, this series offers unrivalled versatility.
Whether in V-position for breaking through high snow drifts, in Y-position for pushing snow aside, or in straight or lateral position for clean clearing – this plough is the answer to changing requirements. Thanks to the independently controllable plough blades, you can easily adjust the attachment at the touch of a button.
Why the FKP sets the standard in winter maintenance:
- Variable clearing geometry: Thanks to the independently controllable plough blades, you can switch seamlessly between V, Y and lateral positions.
- Compact power: The FKP is perfectly balanced and offers maximum stability whilst maintaining a low kerb weight.
- Extremely smooth running: The 20 series offers even smoother running thanks to an innovative spring-loaded flap suspension.
- Maximum impact protection: The proven impact protection reliably safeguards the vehicle and driver against damage caused by hidden obstacles such as kerbs or manhole covers.
The right model for every host vehicle
To meet the various requirements and ensure stability, we offer the FKP series in two specialised versions:
Light version (XX05 series): Weight-optimised and compact – ideal for smaller narrow-gauge vehicles.
Heavy-duty version (XX20 series): Maximum robustness for tough continuous use and larger carrier vehicles where high stability and impact force are required.
Fiedler pouring arm comparison: Which model suits your requirements?
Fiedler Wedge Plough Comparison: Which one suits your needs?
| Features | FKP 1105 | FKP 1205 | FKP 1305 | FKP 1505 | FKP 1320 | FKP 1520 | FKP 1720 | FKP 1920 |
|---|---|---|---|---|---|---|---|---|
| Working width, straight position | 1.25 m | 1.36 m | 1.53 m | 1.70 m | 1.56 m | 1.78 m | 2.06 m | 2.40 m |
| Working width, V-position | 1.13 m | 1.23 m | 1.40 m | 1.53 m | 1.31 m | 1.50 m | 1.73 m | 2.00 m |
| Working width, Y-position | 1.19 m | 1.30 m | 1.45 m | 1.60 m | 1.30 m | 1.50 m | 1.72 m | 2.00 m |
| Working width, lateral position | 1.16 m | 1.26 m | 1.42 m | 1.57 m | 1.30 m | 1.50 m | 1.72 m | 2.00 m |
| Swivel angle on both sides: V-position / Y-position | 27.5° / 20° | 27.5° / 20° | 27.5° / 20° | 27.5° / 20° | 34° / 34° | 34° / 34° | 34° / 34° | 34° / 34° |
| Weight | approx. 110 kg | approx. 120 kg | approx. 130 kg | approx. 140 kg | approx. 220 kg | approx. 230 kg | approx. 240 kg | approx. 260 kg |
| Oil requirement | 5 l/min | 5 l/min | 5 l/min | 5 l/min | 25 l/min | 25 l/min | 25 l/min | 25 l/min |
FKP 1105
Features:
▪ tool-free assembly
▪ Very small stem dimension
▪ Very lightweight design
▪ Collision protection through spring flap segments with return damping
▪ Clearing bar closed in the middle
▪ Compact design - very narrow passage width
Option:
▪ Plow lighting
▪ Scraper blade material steel (Hardox) | plastic | combination (steel/rubber)
▪ Curbstone deflector
▪ Wind deflector
▪ Height-adjustable gliding foot - to protect the gliding shoe
▪ Height-adjustable support wheels, wear-free - to protect the gliding shoe and the cutting edges
Technical data:
▪ Working width: 1246 mm (straight) | 1126 mm (wedge shape) | 1184 mm (V-shape) | 1155 mm (sideways)
▪ Blade height: 612 mm
▪ Swivel angle: 27.5° on both sides (wedge shape) | 20° (V-shape)
▪ Weight: approx. 110 kg
▪ L x W x H: 380 x 1138 x 668 mm (transport dimensions)
▪ Oil requirement: 5 l/min
FKP 1205
Features:
▪ tool-free assembly
▪ Very small stem dimension
▪ Very lightweight design
▪ Collision protection through spring flap segments with return damping
▪ Clearing bar closed in the middle
▪ Compact design - very narrow passage width
Option:
▪ Plow lighting
▪ Scraper blade material steel (Hardox) | plastic | combination (steel/rubber)
▪ Curbstone deflector
▪ Wind deflector
▪ Height-adjustable gliding foot - to protect the gliding shoe
▪ Height-adjustable support wheels, wear-free - to protect the gliding shoe and the cutting edges
Technical data:
▪ Working width: 1358 mm (straight) | 1226 mm (wedge-shaped) | 1290 mm (V-shaped) | 1258 mm (sideways)
▪ Blade height: 614 mm
▪ Swivel angle: 27.5° on both sides (wedge shape) | 20° (V-shape)
▪ Weight: approx. 120 kg
▪ L x W x H: 409 x 1240 x 668 mm (transport dimensions)
▪ Oil requirement: 5 l/min
FKP 1305
Features:
▪ tool-free assembly
▪ Very small stem dimension
▪ Very lightweight design
▪ Collision protection through spring flap segments with return damping
▪ Clearing bar closed in the middle
▪ Compact design - very narrow passage width
Option:
▪ Plow lighting
▪ Scraper blade material steel (Hardox) | plastic | combination (steel/rubber)
▪ Curbstone deflector
▪ Wind deflector
▪ Height-adjustable gliding foot - to protect the gliding shoe
▪ Height-adjustable support wheels, wear-free - to protect the gliding shoe and the cutting edges
Technical data:
▪ Working width: 1528 mm (straight) | 1382 mm (wedge shape) | 1445 mm (V-shape) | 1414 mm (sideways)
▪ Blade height: 616 mm
▪ Pivoting angle: 27.5° on both sides (wedge shape) | 20° (V-shape)
▪ Weight: approx. 130 kg
▪ L x W x H: 478 x 1385 x 668 mm (transport dimensions)
▪ Oil requirement: 5 l/min
FKP 1505
Features:
▪ tool-free assembly
▪ Very small stem dimension
▪ Very lightweight design
▪ Collision protection through spring flap segments with return damping
▪ Clearing bar closed in the middle
▪ Compact design - very narrow passage width
Option:
▪ Plow lighting
▪ Scraper blade material steel (Hardox) | plastic | combination (steel/rubber)
▪ Curbstone deflector
▪ Wind deflector
▪ Height-adjustable gliding foot - to protect the gliding shoe
▪ Height-adjustable support wheels, wear-free - to protect the gliding shoe and the cutting edges
Technical data:
▪ Working width: 1696 mm (straight) | 1531 mm (wedge shape) | 1603 mm (V-shape) | 1567 mm (sideways)
▪ Blade height: 618 mm
▪ Swivel angle: 27.5° on both sides (wedge shape) | 20° (V-shape)
▪ Weight: approx. 140 kg
▪ L x W x H: 520 x 1535 x 668 mm (transport dimensions)
▪ Oil requirement: 5 l/min
FKP 1320
Features:
▪ Tool-free installation
▪ very short projection
▪ Standard kerb deflector
▪ Impact protection via spring-loaded flap segments with rebound damping
▪ Centrally closed clearance strip
▪ 2D floor tracing with low force transmission
▪ Compact design – very narrow clearance width
Option:
▪ LED plough lighting
▪ Wind deflector
▪ Skid plate material: steel (Hardox) | plastic | combination (steel/rubber)
▪ Comfort control
▪ Height-adjustable support wheels, wear-free – to protect the skid plate and scraper bars
▪ Electric changeover valve
▪ Active tilt adjustment (hydraulic)
▪ Safety valve (hydraulic)
▪ Warning markings (RSA) and reflectors
▪ Front linkage (FUF1300) with rigid mounting plate
▪ Vehicle-specific reinforcements | Bracing | Hydraulic couplings | Hydraulic system
Technical data:
▪ Working width: 1.56 m (straight position) | 1.31 m (V-position) | 1.30 m (Y-position) | 1.30 m (side position)
▪ Swivel angle: 34° on both sides
▪ Blade height: 0.83 m
▪ Clearance width: 1.34 m (side position)
▪ Weight: approx. 220 kg
▪ Oil requirement: 25 l/min
FKP 1520
Features:
▪ Tool-free installation
▪ very short projection
▪ Standard kerb deflector
▪ Impact protection via spring-loaded flap segments with rebound damping
▪ Centrally closed clearance strip
▪ 2D floor tracing with low force transmission
▪ Compact design – very narrow clearance width
Option:
▪ LED plough lighting
▪ Wind deflector
▪ Skid plate material: steel (Hardox) | plastic | combination (steel/rubber)
▪ Comfort control
▪ Height-adjustable support wheels, wear-free – to protect the skid plate and scraper bars
▪ Electric changeover valve
▪ Active tilt adjustment (hydraulic)
▪ Safety valve (hydraulic)
▪ Warning markings (RSA) and reflectors
▪ Front linkage (FUF1300) with rigid mounting plate
▪ Vehicle-specific reinforcements | Bracing | Hydraulic couplings | Hydraulic system
Technical data:
▪ Working width: 1.78 m (straight position) | 1.50 m (V-position) | 1.50 m (Y-position) | 1.50 m (side position)
▪ Swivel angle: 34° forwards | 34° backwards on both sides
▪ Blade height: 0.82 m
▪ Clearance width: 1.50 m (V | Y | lateral position)
▪ Weight: approx. 230 kg
▪ Oil requirement: 25 l/min
FKP 1720
Features:
▪ Tool-free installation
▪ very short projection
▪ Standard kerb deflector
▪ Impact protection via spring-loaded flap segments with rebound damping
▪ Centrally closed clearance strip
▪ 2D floor tracing with low force transmission
▪ Compact design – very narrow clearance width
Option:
▪ LED plough lighting
▪ Wind deflector
▪ Skid plate material: steel (Hardox) | plastic | combination (steel/rubber)
▪ Comfort control
▪ Height-adjustable support wheels, wear-free – to protect the skid plate and scraper bars
▪ Electric changeover valve
▪ Active tilt adjustment (hydraulic)
▪ Safety valve (hydraulic)
▪ Warning markings (RSA) and reflectors
▪ Front linkage (FUF1300) with rigid mounting plate
▪ Vehicle-specific reinforcements | Bracing | Hydraulic couplings | Hydraulic system
Technical data:
▪ Working width: 2.06 m (straight position) | 1.73 m (V-position) | 1.72 m (Y-position) | 1.72 m (side position)
▪ Swivel angle: 34° forwards | 34° backwards on both sides
▪ Blade height: 0.82 m
▪ Clearance width: 1.72 m (Y- | lateral position)
▪ Weight: approx. 240 kg
▪ Oil requirement: 25 l/min
FKP 1920
Features:
▪ Tool-free installation
▪ very short projection
▪ Standard kerb deflector
▪ Impact protection via spring-loaded flap segments with rebound damping
▪ Centrally closed clearance strip
▪ 2D floor tracing with low force transmission
▪ Compact design – very narrow clearance width
Option:
▪ LED plough lighting
▪ Wind deflector
▪ Skid plate material: steel (Hardox) | plastic | combination (steel/rubber)
▪ Comfort control
▪ Height-adjustable support wheels, wear-free – to protect the skid plate and scraper bars
▪ Electric changeover valve
▪ Active tilt adjustment (hydraulic)
▪ Safety valve (hydraulic)
▪ Warning markings (RSA) and reflectors
▪ Front linkage (FUF1300) with rigid mounting plate
▪ Vehicle-specific reinforcements | Bracing | Hydraulic couplings | Hydraulic system
Technical data:
▪ Working width: 2.40 m (straight position) | 2.00 m (V-position) | 2.00 m (Y-position) | 2.00 m (side position)
▪ Swivel angle: 34° forwards | 34° backwards on both sides
▪ Blade height: 0.81 m
▪ Clearance width: 2.00 m (V | Y | lateral position)
▪ Weight: approx. 260 kg
▪ Oil requirement: 25 l/min
The 10 most important FAQs about the wedge plough
The series differ in terms of their robustness and weight. The XX05 series is a weight-optimised, lightweight version designed specifically for smaller narrow-gauge vehicles and municipal tractors with lower lifting capacity. The XX20 series is the heavy-duty version for intensive continuous use and larger carrier vehicles, where maximum stability and penetration force are paramount.

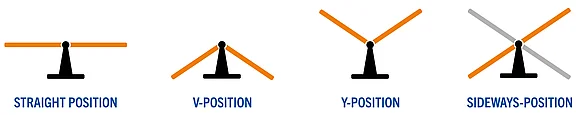

The FKP is a versatile tool. At the touch of a button, it can be adjusted to three main positions:
- V-position: For breaking through high snowdrifts and for the ‘initial assault’.
- Y-position: For efficiently pushing together and piling up snow.
- Side position (straight/angled): For classic clearing to the side (left or right).
Safety is a priority: the FKP features a tried-and-tested folding blade system. When the plough hits an obstacle (e.g. a manhole cover), the blade segments fold away individually and are immediately returned to their working position by spring force. This protects the plough, the vehicle and the driver.
Depending on the surface and intended use, we offer a range of scrapers:
- Plastic scraper blades: Gentle on the surface, ideal for smooth surfaces.
- Steel scrapers (Hardox): Aggressive and durable for compacted snow and ice.
- Combi scrapers: The perfect combination of long service life and extremely smooth running.
