FUV 1000
Functions / Advantages:
- Usage in combination with option FTS Kombipower (hot water system)
- special hot water nozzles for homogeneous application
- Hot water hood with 1000 mm working width
- Displacement frame 1200 mm with 500 mm displacement via a cylinder (right/left)
- Storage via a maintenance-free spring element (ground adjustment)
- an impeller for optimal ground-surface adaptation
- Sealing to the floor by special polyurethane strips
- Tilt adjustment for optimal adjustment to the respective lifting unit
- complete unit made of stainless steel V2A
- incl. storage cart with wheels for easy mounting
Optional:
- Lateral nozzles (mounting on both sides possible)
Technical Specifications:
- Weight: approx. 60 kg (depending on the equipment)
- L x W x H: 770 x 1200 x 540 mm (L = 550 mm without support wheel)
- Oil demand: 5 l/min

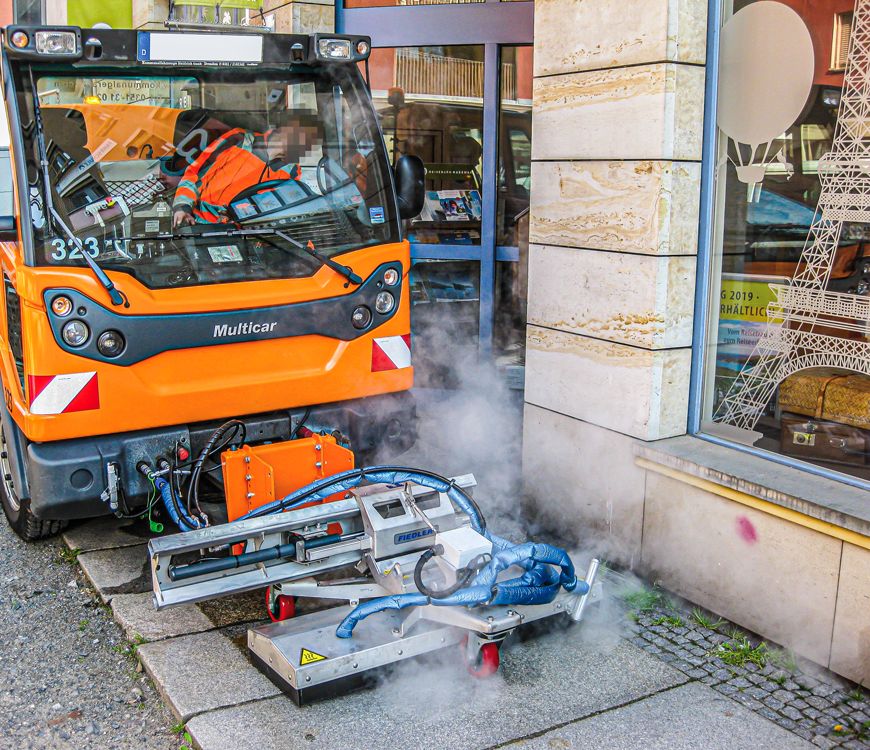

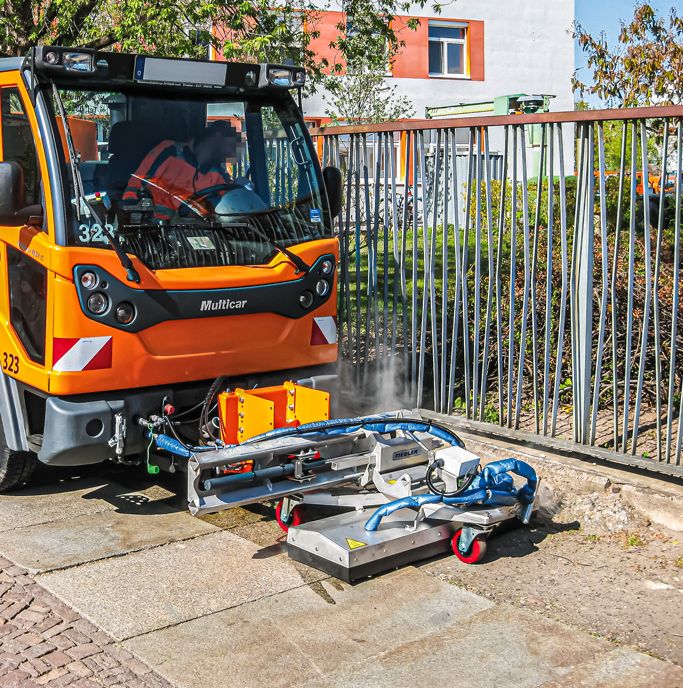

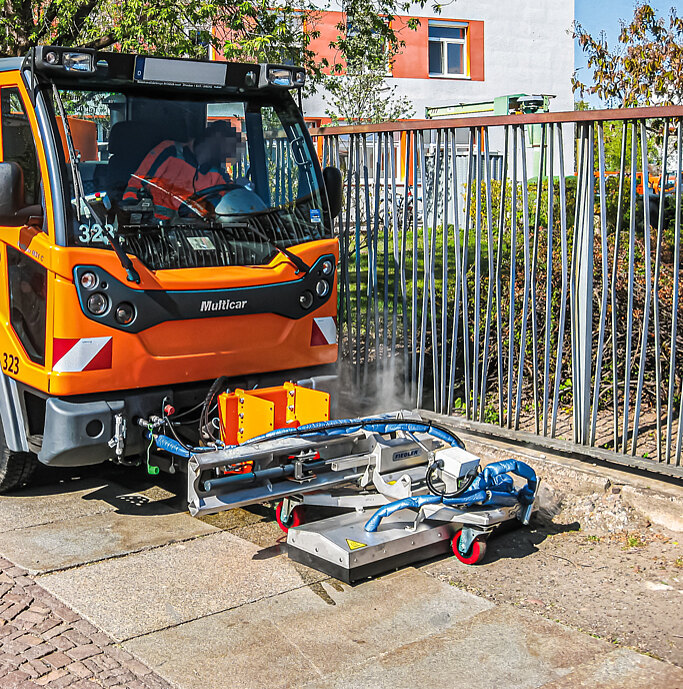

FUV 1200
Functions / Advantages:
- Usage in combination with option FTS Kombipower (hot water system)
- special hot water nozzles for homogeneous application
- Hot water hood with 1200 mm working width
- Displacement frame 1200 mm with 500 mm displacement via a cylinder (right/left)
- Storage via a maintenance-free spring element (ground adjustment)
- an impeller for optimal ground-surface adaptation
- Sealing to the floor by special polyurethane strips
- Tilt adjustment for optimal adjustment to the respective lifting unit
- complete unit made of stainless steel V2A
- incl. storage cart with wheels for easy mounting
Optional:
- Lateral nozzles (mounting on both sides possible)
Technical Specifications:
- Weight: approx. 65 kg (depending on the equipment)
- L x W x H: 770 x 1200 x 540 mm (L = 550 mm without support wheel)
- Oil demand: 5 l/min
FUV 1600
Functions / Advantages:
- Usage in combination with option FTS Kombipower (hot water system)
- special hot water nozzles for homogeneous application
- Hot water hood with 1600 mm working width
- Displacement frame 1600 mm with 500 mm displacement via a cylinder (right/left)
- Storage via a maintenance-free spring element (ground adjustment)
- three wheels for optimal ground-surface adaptation
- Sealing to the floor by special polyurethane strips
- Tilt adjustment for optimal adjustment to the respective lifting unit
- complete unit made of stainless steel V2A
- incl. storage cart with wheels for easy mounting
Optional:
- Lateral nozzles (mounting on both sides possible)
Technical Specifications:
- Weight: approx. 115 kg (depending on the equipment)
- L x W x H: 885 x 1600 x 540 mm
- Oil demand: 5 l/min
- Voltage: 12V DC / 8W
